GDM.SYMBOLPLATTE

3 colours 2 textures 4 formats 6 variants

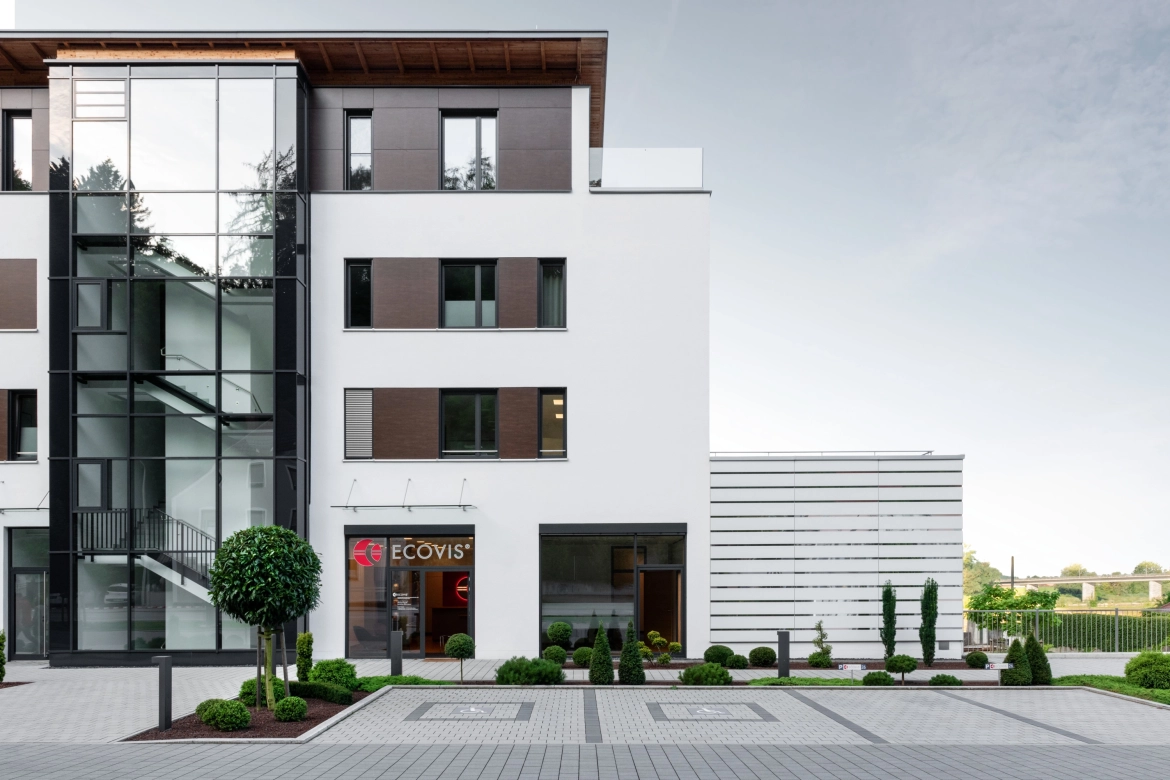

Symbol plates are suitable for the permanent marking of special areas. Whether in parking lots, as a guidance and information system on intersections, paths or roads - they facilitate orientation on the surface. In addition to the standard symbols, individual symbols can be produced or matched in color, surface and size to the adjacent pavement.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed molded-on spacer blocks
sharp-edged

Product gallery

Colours

Formats

Legende

Micro bevel (≤ 2x2 mm)
sharp-edged

GDM.SYMBOLPLATTE (fino; polished)

Cycle path

Anthrazite
Red
Length x Width x Height
60.0 x 40.0 x 8.0 cm
Weight
43.0 kg / St.
Edge
sharp-edged

Loading zone

Anthrazite
Length x Width x Height
40.0 x 40.0 x 8.0 cm
Weight
29.0 kg / St.
Edge
sharp-edged

Mother-child

Anthrazite
Length x Width x Height
40.0 x 40.0 x 8.0 cm
Weight
29.0 kg / St.
Edge
sharp-edged

Mother-child

Anthrazite
Red
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
16.0 kg / St.
Edge
sharp-edged

Parking space

Anthrazite
Length x Width x Height
40.0 x 40.0 x 8.0 cm
Weight
29.0 kg / St.
Edge
sharp-edged

Parking space

Anthrazite
Red
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
16.0 kg / St.
Edge
sharp-edged

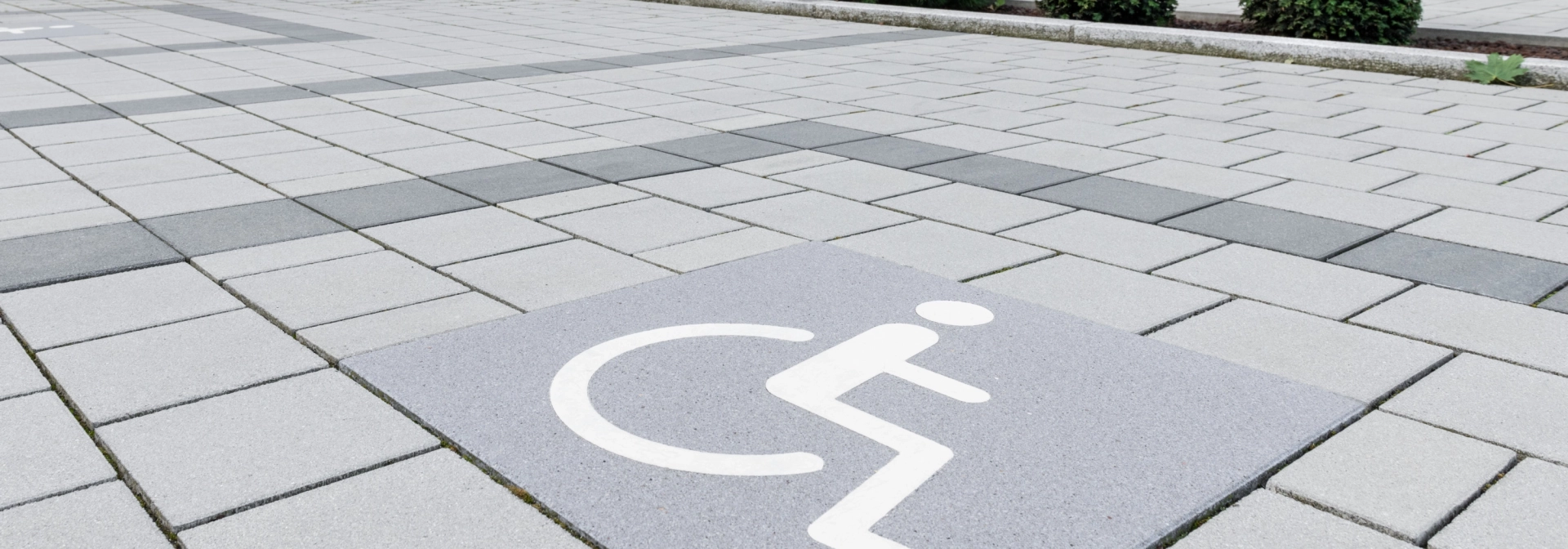

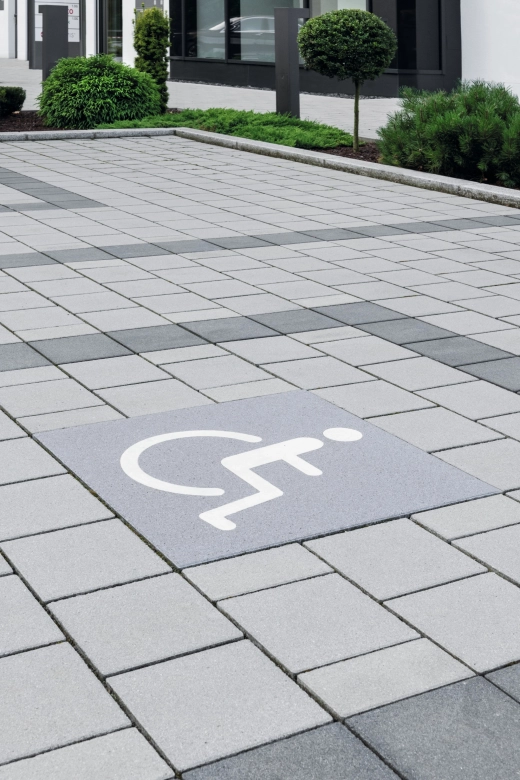

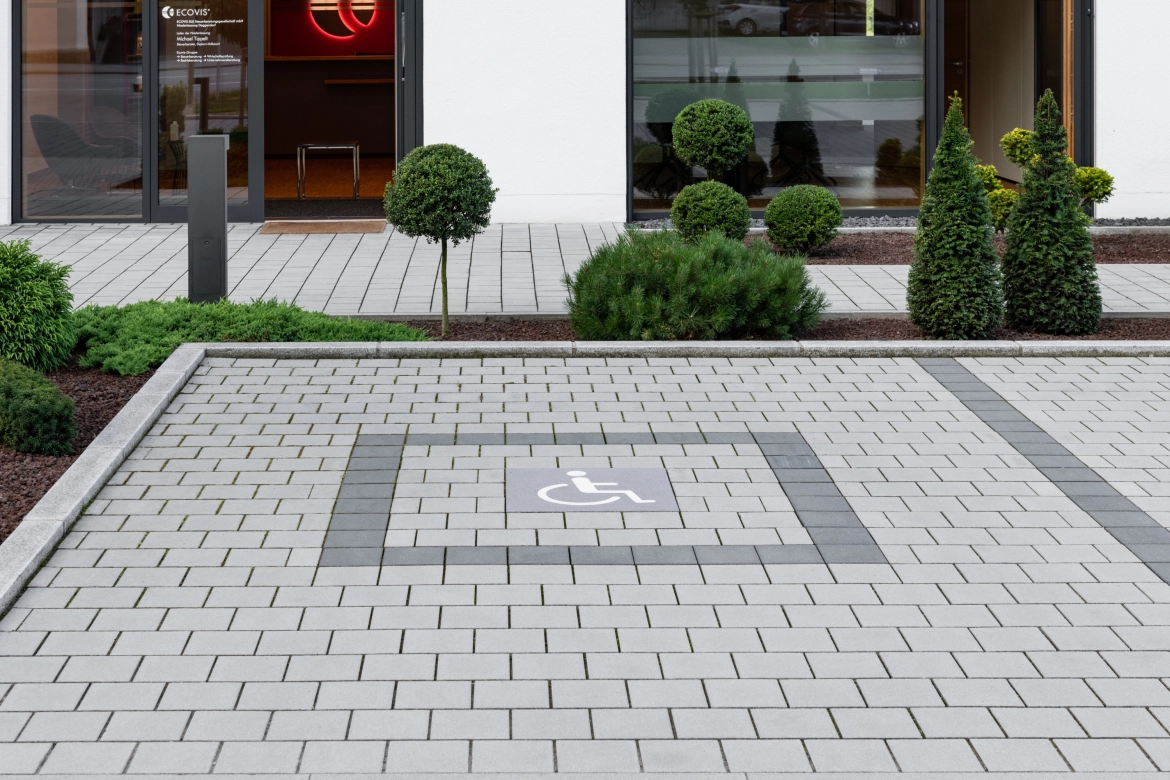

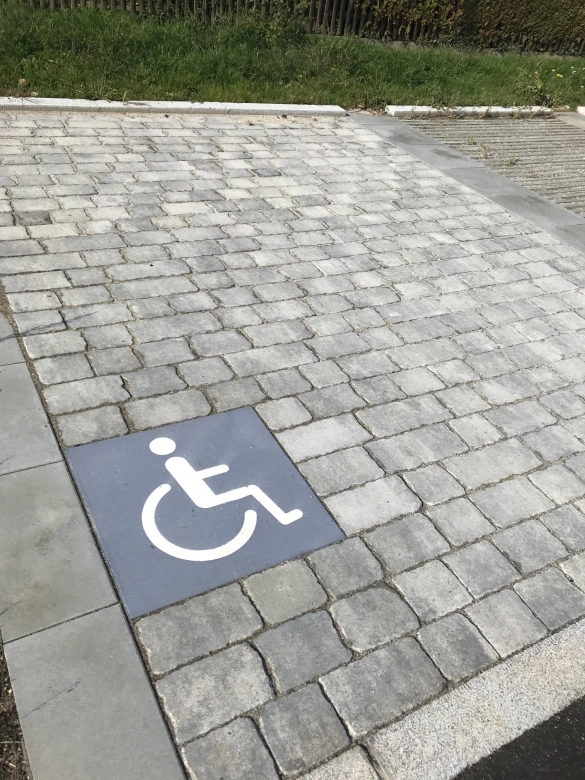

Wheelchair

Anthrazite
Length x Width x Height
40.0 x 40.0 x 8.0 cm
Weight
29.0 kg / St.
Edge
sharp-edged

Wheelchair

Anthrazite
Red
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
16.0 kg / St.
Edge
sharp-edged

GDM.SYMBOLPLATTE (nativo; unworked)

E-filling station

Blue
Length x Width x Height
60.0 x 60.0 x 8.0 cm
Weight
66.0 kg / St.
Edge
Micro bevel (≤ 2x2 mm)

Mother-child

Blue
Length x Width x Height
60.0 x 60.0 x 8.0 cm
Weight
66.0 kg / St.
Edge
Micro bevel (≤ 2x2 mm)

Wheelchair

Blue
Length x Width x Height
60.0 x 60.0 x 8.0 cm
Weight
66.0 kg / St.
Edge
Micro bevel (≤ 2x2 mm)

Product notes

Facing made of quartz wear layer and color-coordinated natural stone chippings and sands with UV-resistant iron oxide paints
