GDM.DRAIN stone
ecological area system

GDM.DRAIN stone

5 colours 3 textures 2 formats 2 variants

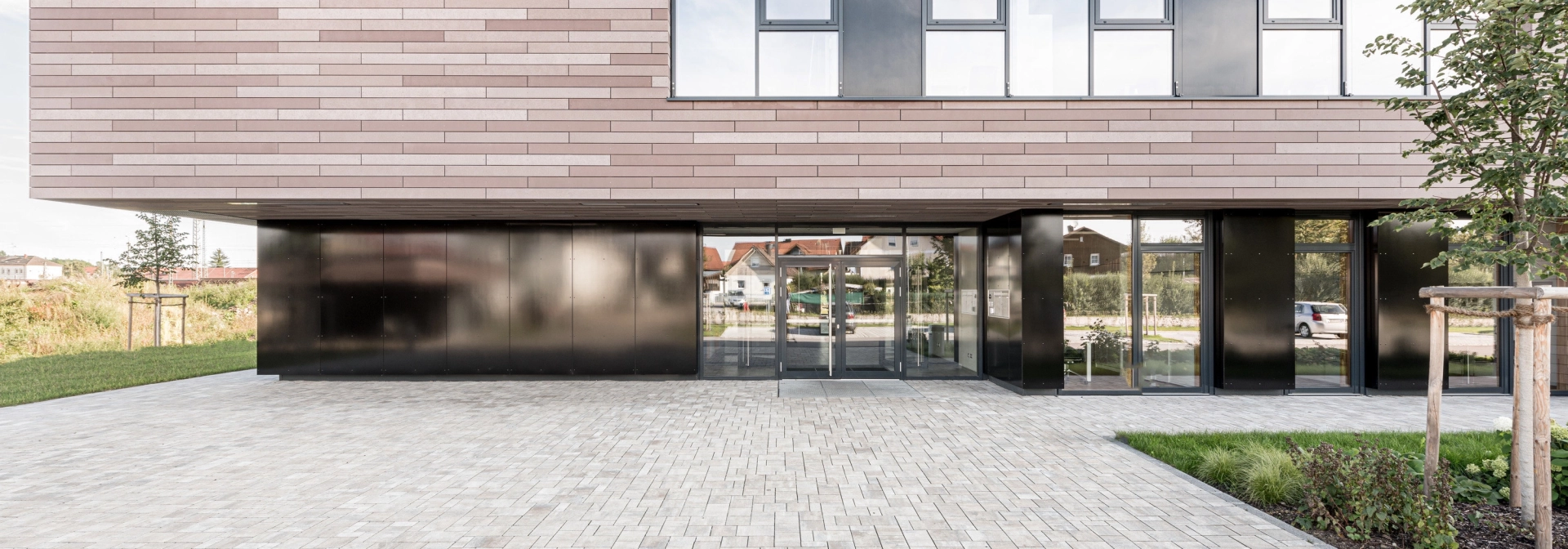

GDM.DRAIN stone is an attractive design paving that does not show its ecological function thanks to its narrow joint pattern. GDM.DRAIN stone drains rainwater via the joint and integrated horizontal and vertical channels.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed spacers/​composite stabilizers
aged edge
with concealed spacers/​composite stabilizers

proActive features

5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25
proDrain
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Product gallery

Colours

Formats

Legende

Heavy load for occasional use
Heavy load with regular or frequent use
Micro bevel (≤ 2x2 mm)
aged edge
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25
proDrain

Multi-brick system type AW (antikplus; aged)

Grey-Black
Shell-Lime
Height
8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
aged edge
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Multi-brick system type AW (nativo; unworked)

Grey
Grey-Black
Shell-Lime
Height
8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Paving stone (ferro; stainless steel shot-blasted)

Grey-Uni
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Paving stone (nativo; unworked)

Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25
Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25
Anthrazite
Grey
Length x Width x Height
30.0 x 20.0 x 10.0 cm
Weight
200.0 kg / m²
Load capacity
Heavy load with regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25
Anthrazite
Grey
Length x Width x Height
20.0 x 20.0 x 10.0 cm
Weight
200.0 kg / m²
Load capacity
Heavy load with regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Product notes

particularly high concrete quality due to high-strength quartz, granite or basalt aggregates
More product notes

More GDM.DRAIN products

ecological area system
GDM.DRAIN aBG Nr. Z-84.1-9
