GDM.TETRAGO liner
Lawn liner

GDM.TETRAGO liner

1 colour 1 texture 2 formats 1 variant

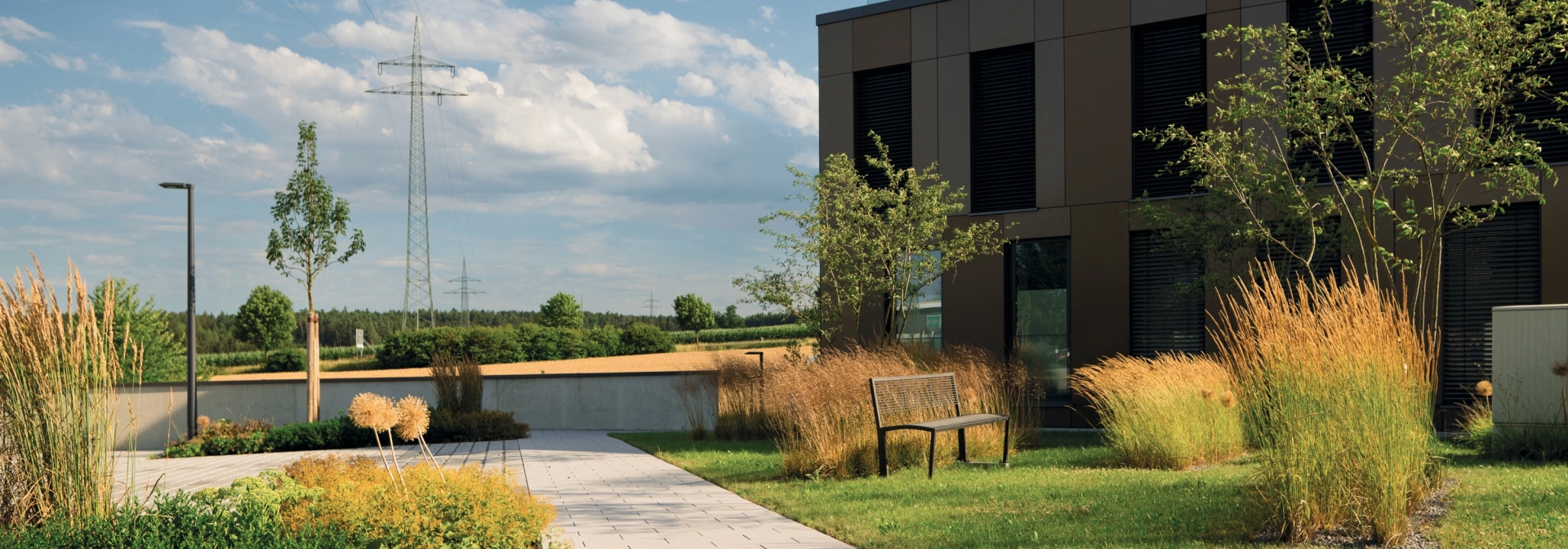

With the turf liner, linear surface geometries can be set in an exciting dialog with the building architecture. The joints can be greened or filled with chippings, depending on requirements.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed spacers/​composite stabilizers

proActive features

15 % greenable area, runoff coefficient ψ = 0.2
proDrain
15 % greenable area, runoff coefficient ψ = 0.2
45 % greenable area, runoff coefficient ψ = 0.2
proDrain
45 % greenable area, runoff coefficient ψ = 0.2

Product gallery

Colours

Formats

Legende

Accessible by car
Heavy load for occasional use
Heavy load with regular or frequent use
Micro bevel (≤ 2x2 mm)
15 % greenable area, runoff coefficient ψ = 0.2
proDrain

GDM.TETRAGO liner 1-1 (nativo; unworked)

Rasenliner® 30 mm

Grey
Length x Width x Height
40.0 x 20.0 x 8.0 cm
Gap
30.0 mm
Weight
155.0 kg / m²
Load capacity
Accessible by car
Edge
Micro bevel (≤ 2x2 mm)
Properties
15 % greenable area, runoff coefficient ψ = 0.2

Rasenliner® 30 mm

Grey
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Gap
30.0 mm
Weight
155.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
15 % greenable area, runoff coefficient ψ = 0.2

Rasenliner® 30 mm

Grey
Length x Width x Height
30.0 x 20.0 x 10.0 cm
Gap
30.0 mm
Weight
190.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
15 % greenable area, runoff coefficient ψ = 0.2

GDM.TETRAGO liner 3-3 (nativo; unworked)

Rasenliner® 30 mm

Grey
Length x Width x Height
30.0 x 20.0 x 10.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load with regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
45 % greenable area, runoff coefficient ψ = 0.2

Product notes

particularly high concrete quality due to high-strength quartz, granite or basalt aggregates
