Godelmann GDM.MASSIMO plank

Product details

Chamfers & Edges

sharp-edged

without spacer

Product gallery

**GDM.MASSIMO plank** L/B/H: 250/20/8 cm visia Grau Holzstruktur

Colours

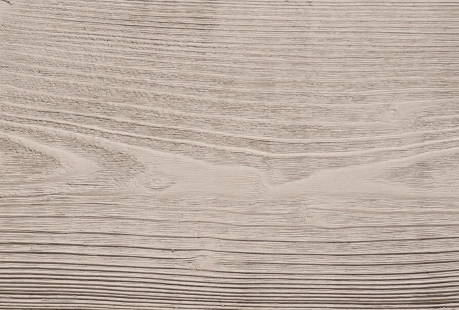

visia; Wood structure Grey

visia Fair-faced concrete with wood texture – R-Value 13
Surface made of high-performance concrete with wood texture

visia; Wood structure Anthrazite

visia Fair-faced concrete with wood texture – R-Value 13
Surface made of high-performance concrete with wood texture

visia; Wood structure Brown

visia Fair-faced concrete with wood texture – R-Value 13
Surface made of high-performance concrete with wood texture

Formats

Legende

accessible

sharp-edged

Diele (visia; Wood structure)

Length x Width x Height

120.0 x 20.0 x 4.0 cm

Weight

23.0 kg / St.

Load capacity

Edge

Length x Width x Height

60.0 x 20.0 x 4.0 cm

Weight

12.0 kg / St.

Load capacity

Edge

Length x Width x Height

250.0 x 22.0 x 8.0 cm

Weight

103.0 kg / St.

Load capacity

Edge

Length x Width x Height

250.0 x 20.0 x 8.0 cm

Weight

94.0 kg / St.

Load capacity

Edge

Length x Width x Height

250.0 x 18.0 x 8.0 cm

Weight

84.0 kg / St.

Load capacity

Edge

Length x Width x Height

250.0 x 16.0 x 8.0 cm

Weight

75.0 kg / St.

Load capacity

Edge

Length cm	Width cm	Height cm	Weight kg / St.
120.0	20.0	4.0	23.0
60.0	20.0	4.0	12.0
250.0	22.0	8.0	103.0
250.0	20.0	8.0	94.0
250.0	18.0	8.0	84.0
250.0	16.0	8.0	75.0

Product notes

Concrete quality ≥ C70/85 (≥ C60/75 depending on production with anthracite)

More product notes

Features

visia Fair-faced concrete with wood texture – R-Value 13
Surface made of high-performance concrete with wood texture
non-slip and sure-footed
sharp-edged
without spacer
handmade, from GDM high-performance concrete

Quality

Concrete quality ≥ C70/85 (≥ C60/75 depending on production with anthracite)
Exposed concrete class SB4
made throughout from color-coordinated natural stone chippings and sands with UV-resistant iron oxide paints
Garden design element made of concrete according to DIN EN 13198
Frost/de-icing salt resistance 10 times higher than the standard: ≤ 100 g/m2(standard: ≤ 1.0 kg/m2)
CO₂ neutrally produced

Installation instructions

Installation in one-third offset recommended
With a bonded construction method, cracking can occur due to the properties of the concrete. production-related deformations > 3.0 mm to max. 5.0 mm cannot be avoided with certainty in the production process, but are characteristic and can be corrected accordingly during installation.
In order to ensure the required evenness of the flooring, it is necessary to check the planks for dimensional tolerance before laying them using a guide rail
If tolerances are determined with regard to the evenness of the product, the planks must be divided approximately in the middle in terms of length and laid by breaking up the standard bond in order to ensure the required evenness
In order to imitate an old wood-like character of the product, pores (wormholes) on the surface as well as partly irregular edge guides are desired and appear in an indefinite number and variety.

Price-/Delivery-Information

Delivery of 250 cm long planks on special factory pallets 48.00 EUR/pc (refund on return)
Rental of special vacuum suction plates 29.00 EUR/day
all prices in Euro/unit plus VAT and freight
