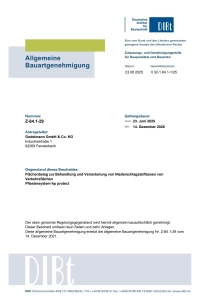

aBG No. Z-84.1-29 (hp)

The paving systems with aBG no. Z-84.1-29 consist of concrete paving blocks with large spores in accordance with DIN EN 1338 and a special jointing material. The design pavers, which have been tried and tested in practice many times over, are predestined for modern, design-oriented surface concepts, even with large-format stones. The wide range combines carefully finished visible surfaces in natural stone colors with high functionality. Percolation takes place via the stone and the joints, which are at least 5 mm wide and have a surface-related proportion of 5 to 10 percent.

proWater - water-treating surface covering with groundwater protection

With proWater, the pioneers of permeable paving stones offer a comprehensive range of environmentally friendly solutions. After 30 years of intensive research and development in the field of ecological paving, we now offer tried and tested products for almost every construction task: permeable paving systems with groundwater protection, economical and with the security of a general building permit, regenerable and with numerous variants for an appealing, individual look.

proWater

GDM.SCADA aBG no. Z-84.1-29, 30/20/8 cm, 20/20/8 cm with 8.5 mm joint, native, medium limestone
©

Typical areas of application are parking lots, residential and service roads, town and village squares as well as paving for industrial and commercial areas. The paving system is classified in the general type approval no. Z-84.1-29 as a "surface covering for the treatment and infiltration of rainwater runoff from traffic areas". You can select the formats and colors from our broad product portfolio. Provided the minimum joint width is 5mm.

Product-specific features

  • Permeable paving system made from porous concrete
  • Concrete paving stones according to DIN EN 1338
  • Retention of mineral oil hydrocarbons, heavy metals, AFS
  • Regenerable paving
  • Force-fit and form-fit bonded effect
  • Applicable up to Bk 1,8 in accordance with RStO 12
  • Resistant to frost and de-icing salt

Special features

  • Supplied with ready-to-install joint material
  • High concrete strength, high load-bearing capacity
  • Design pavers with a factory-finished stone finish
  • Joint spacing varies from 5 to 12 mm depending on the system
  • Versatile range for a wide variety of technical and design requirements

Proof of suitability

  • Area-related infiltration rate: > 270 l/(s x ha)
  • Runoff coefficient Ψ = 0.0
  • Suitable for deep-pored absorbent cleaning (GEOCLEANING)
    to ensure permanent water permeability
