Godelmann GDM.VERLEGEHILFEN

Laying aids

1 format 14 variants

With our joint crosses, T-spacers and the GDM.LAYERING RAIL, the professional laying of patio slabs and large-format paving stones is child's play. The laying aids facilitate the installation of our paving stones and slabs and give the surface a clean and permanently uniform joint pattern.

Formats

Legende

proPower

GDM.FUGENKREUZE und GDM.T-ABSTANDHALTER

GDM.ABSTANDHALTER - joint width 3 mm, height 12 mm with plate

Width x Height

0.3 x 1.2 cm

Gap

3.0 mm

Weight

1.0 kg / St.

GDM.FUGENKREUZ - Joint width 3 mm, height: 15 mm

Width x Height

0.3 x 1.5 cm

Gap

3.0 mm

Weight

0.6 kg / St.

GDM.FUGENKREUZ - joint width 3 mm, height: 30 mm

Width x Height

0.3 x 3.0 cm

Gap

3.0 mm

Weight

0.6 kg / St.

GDM.FUGENKREUZ - joint width 5 mm, height: 30 mm

Width x Height

0.5 x 3.0 cm

Gap

5.0 mm

Weight

0.6 kg / St.

GDM.T-ABSTANDHALTER - Joint width 3 mm, height: 30 mm

Width x Height

0.3 x 3.0 cm

Gap

3.0 mm

Weight

0.6 kg / St.

GDM.T-ABSTANDHALTER - Joint width 5 mm, height: 30 mm

Width x Height

0.5 x 3.0 cm

Gap

5.0 mm

Weight

0.6 kg / St.

GDM.T-ABSTANDHALTER - joint width 3 mm, height: 15 mm

Width x Height

0.3 x 1.5 cm

Gap

3.0 mm

Weight

0.6 kg / St.

Label	Width cm	Height cm	Gap mm	Weight kg / St.
GDM.ABSTANDHALTER - joint width 3 mm, height 12 mm with plate	0.3	1.2	3.0	1.0
GDM.FUGENKREUZ - Joint width 3 mm, height: 15 mm	0.3	1.5	3.0	0.6
GDM.FUGENKREUZ - joint width 3 mm, height: 30 mm	0.3	3.0	3.0	0.6
GDM.FUGENKREUZ - joint width 5 mm, height: 30 mm	0.5	3.0	5.0	0.6
GDM.T-ABSTANDHALTER - Joint width 3 mm, height: 30 mm	0.3	3.0	3.0	0.6
GDM.T-ABSTANDHALTER - Joint width 5 mm, height: 30 mm	0.5	3.0	5.0	0.6
GDM.T-ABSTANDHALTER - joint width 3 mm, height: 15 mm	0.3	1.5	3.0	0.6

GDM.VERLEGEEISEN

Joint width 6 mm

Gap

6.0 mm

Weight

0.5 kg / St.

Joint width 8 mm

Gap

8.0 mm

Weight

0.6 kg / St.

Label		Gap mm	Weight kg / St.
Joint width 6 mm		6.0	0.5
Joint width 8 mm		8.0	0.6

Verschiebeschutz - proPower

proPower: Anchor channel with earth claw

Length x Width x Height

0.0 x 0.0 x 0.0 cm

Weight

0.2 kg / St.

Properties

proPower: Anchor plate with ground spike

Length x Width x Height

0.0 x 0.0 x 0.0 cm

Weight

0.2 kg / St.

Properties

proPower: Cross joint anchor

Length x Width x Height

8.0 x 5.0 x 0.3 cm

Weight

0.2 kg / St.

Properties

proPower: T-joint anchor

Length x Width x Height

8.0 x 5.0 x 0.3 cm

Weight

0.2 kg / St.

Properties

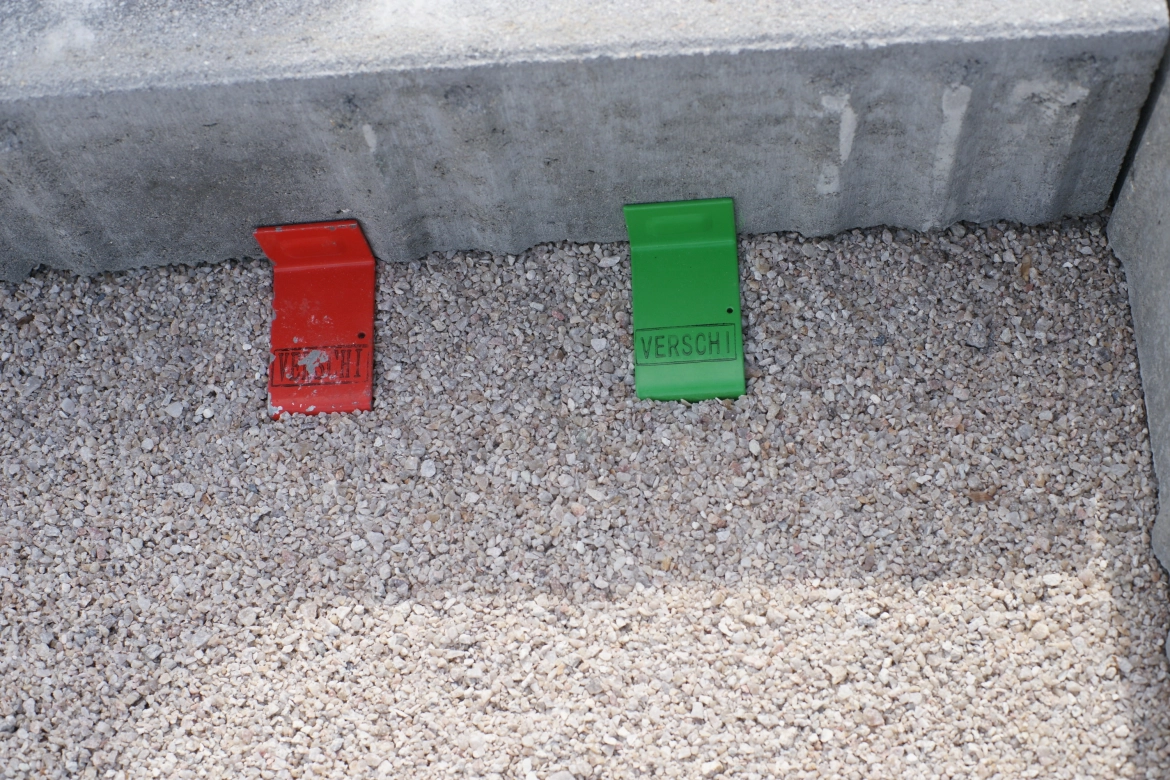

proPower: VERSCHI 485/50

Length x Width x Height

8.0 x 5.0 x 0.3 cm

Weight

0.2 kg / St.

Properties

Label	Length cm	Width cm	Height cm	Weight kg / St.
proPower: Anchor channel with earth claw	0.0	0.0	0.0	0.2
proPower: Anchor plate with ground spike	0.0	0.0	0.0	0.2
proPower: Cross joint anchor	8.0	5.0	0.3	0.2
proPower: T-joint anchor	8.0	5.0	0.3	0.2
proPower: VERSCHI 485/50	8.0	5.0	0.3	0.2

Product notes

More product notes

Features

Joint crosses height 30 mm: Suitable for panel thickness up to 55 mm
Joint crosses height 15 mm: Suitable for panel thickness 30 mm
one container corresponds to 100 PVC joint crosses or T-spacers
only whole containers are available
Shift protection for heavily loaded and highly frequented traffic areas in the area of turning/stopping and approach areas
Additional security for the large format panel systems
Material: galvanized and final painted metal construction (red)
The effect of the VERSCHI was confirmed in a series of tests at theTU Dresden by Prof. Dr. K. W. Damm in a research report and expert opinion.
Faster installation due to specified joint width
Evenly formed joints
No subsequent alignment necessary - this is particularly important for large-format paving stones and slabs! Subsequent alignment is difficult here.
Material: steel, hot-dip galvanized
A credit note in the amount of EUR 28.00 will be issued upon return.
Ground anchor to avoid/prevent displacement movements in traffic areas in the area of turning, stopping and starting areas (protected system).
for formats with a minimum thickness of 8 cm and a minimum length of 30 cm as well as block steps and walls
The bricks are provided with a groove at the factory and supplied together with the anchor channel, which must then be hammered into the prepared groove.
The additional use of blocks with anchor rails in the first row of blocks in walls or on the first and last step in stepped systems prevents displacement in the long term.
made from transparent plastic
A bar and the underlying quarters of the plate can be removed by breaking them off. This creates a T-shaped spacer as required.
If only half of the plate is removed, the spacer can be slid under the panels afterwards.
to avoid/prevent displacement movements in traffic areas in the area of turning, stopping and starting areas

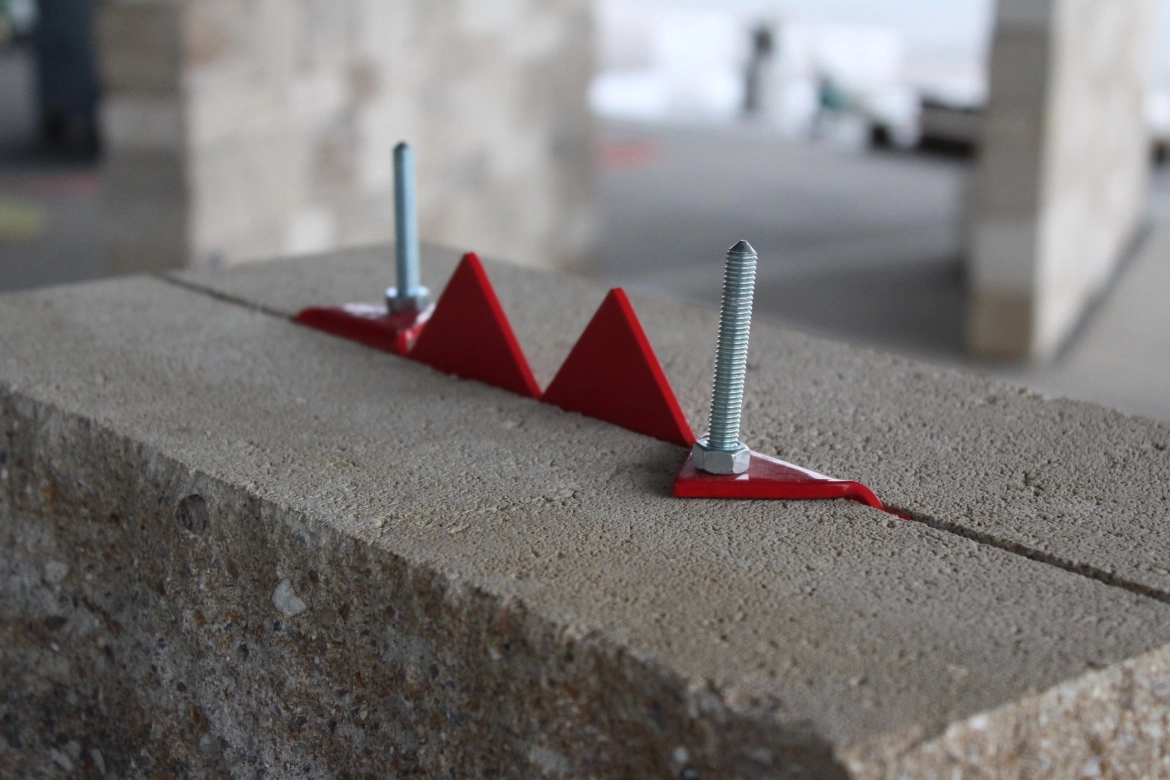

the anchor plate is already firmly pressed into the stone/slab underside during the production process
inseparable connection
patented process
Suitable for almost any format and multi-brick system
Toothing systems and spacers are not affected and remain intact
No slitting of the underside required
Spikes werden bauseits in die Ankerplatte eingeschraubt
Three-point design counteracts shear and torsional forces
Situation-specific and precise positioning in the flooring surface
Elements with anchor plate are installed at the intended position as laying progresses
No subsequent replacement required
suitable for unbound base courses
Effectively suitable for securing pavements against displacement and torsion due to dynamic traffic loads and counteracting loosening.
The contact surfaces protruding in the T-joints and the double anchoring with the base course provide displacement protection with a 360° effect in all expected traffic directions.
Maintenance of the correct joint width ensured.
Can be used for row and lane formations, as well as for non-directional formations.
No conflicts are possible with interlocking stabilizers formed on the side of the paving stones/slabs.

Price-/Delivery-Information

Spacer as additional load 1,20 EUR/100 pcs.
all prices in Euro/unit plus VAT and freight
